Louvre Profiles and Live Louvres

Around 50% cheaper than standard traditional louvre systems

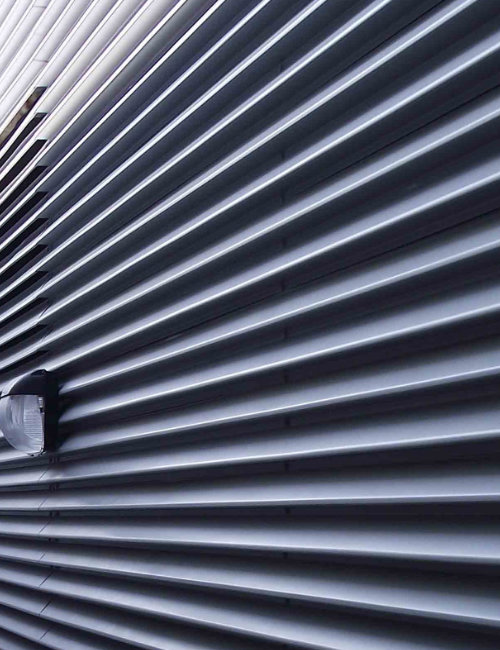

AP70LCP is our 'louvre' profile to match traditional operating louvres. Available roll formed in lengths up to 10 metres long, it is approximately 50% cheaper than standard traditional louvre systems with blanking plates.

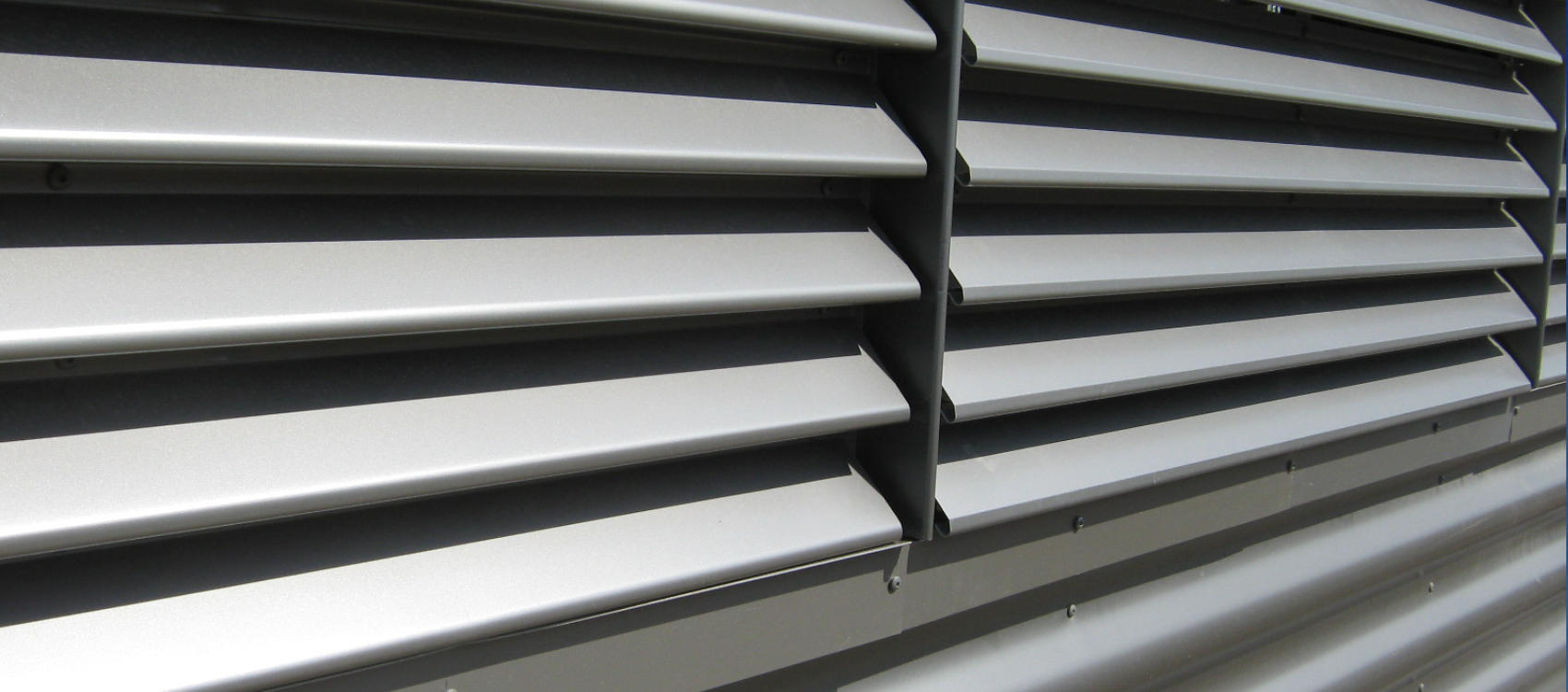

Our 'Live Louvre' systems match and integrate fully with the profiled louvre, Single or Double Bank and provides approximately 50% free inlet area and installed onto a bespoke matching mullion. Available in both Aluminium and Steel they can be supplied in a wide choice of finishes and colours.

Key Benefits

  • All systems as a non-combustible construction
  • Exclusive profile shape to create a traditional louvre appearance
  • Available with fully integrated 'live louvres' as Single and/or Double Bank types
  • Roll formed in lengths up to 10m for less joints and very accurate profiles
  • Available in Steel and Aluminium

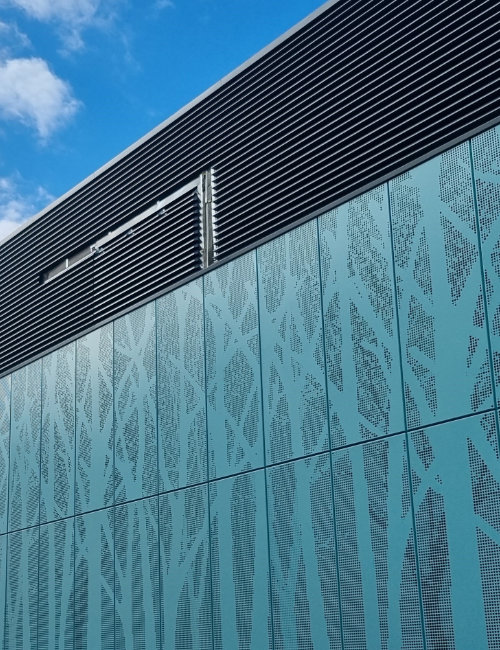

  • Available perforated as an alternative economic option to live louvres
  • Available as a fire-resistance rated insulated system assembly when combined with APL Tritherm™ Spacer System, with simple system upgrades for improved fire resistance performance
  • A1 fire-rated materials available
  • Available in PPC, Armacoil™HDP, Anodised, PUF, PRISMA and LG finishes
  • Up to 40 year warranty available on both the coating and the substrate, including for marine environments
  • Can be laid both horizontally and vertically
  • BSRIA tested
  • System constructions available on to APL StrongBak™, cladding rails, SFS and blockwork
  • Available as an acoustic construction with enhanced acoustic performance.

Download more information

Click to download our Quick Reference Louvres System Summary

Click here to download our Louvre brochure

Click here to download the BSRIA test report

Case Studies

CMR Medical

Please contact us for more information

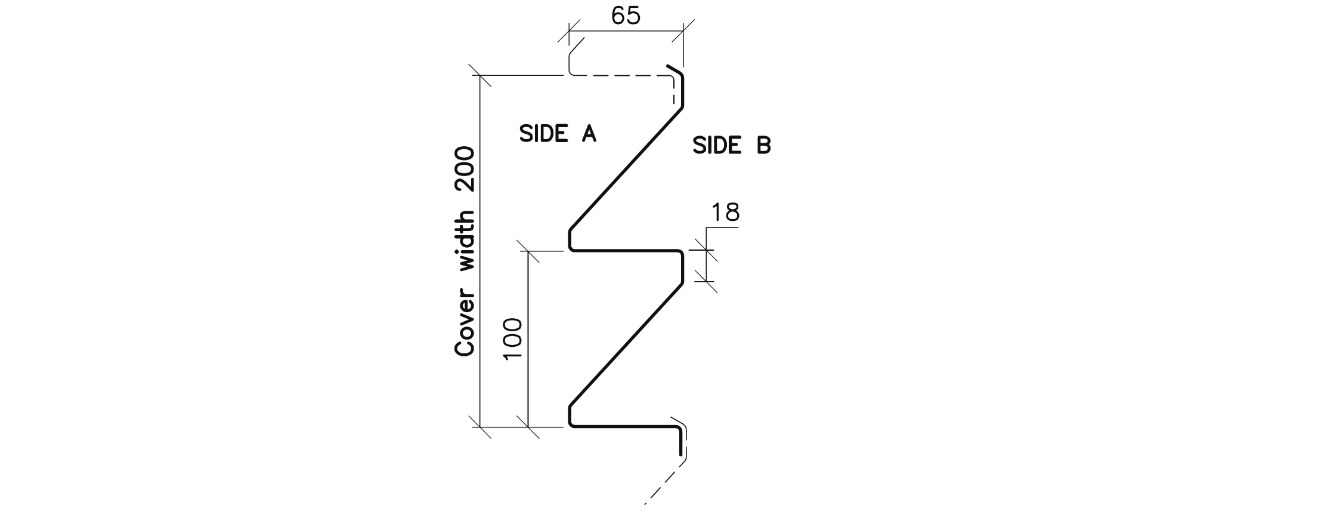

Wall Profile AP70LCP

Full specification onNBS Source

Aluminium datasheet
Steel datasheet

Full specification onNBS Source

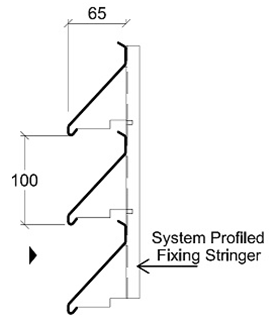

Live LB3 Single Bank

Live LB3 Double Bank

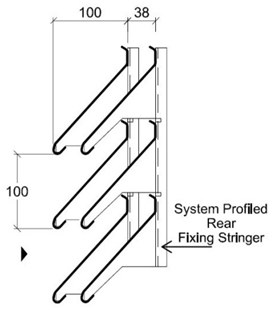

Live LB4 Single Bank

Live LB4 Double Bank
