Cantilever overhangs

Elegant assemblies for verge, eave, parapet and bullnose applications

  • APL Cantilever
  • APL Cantilever

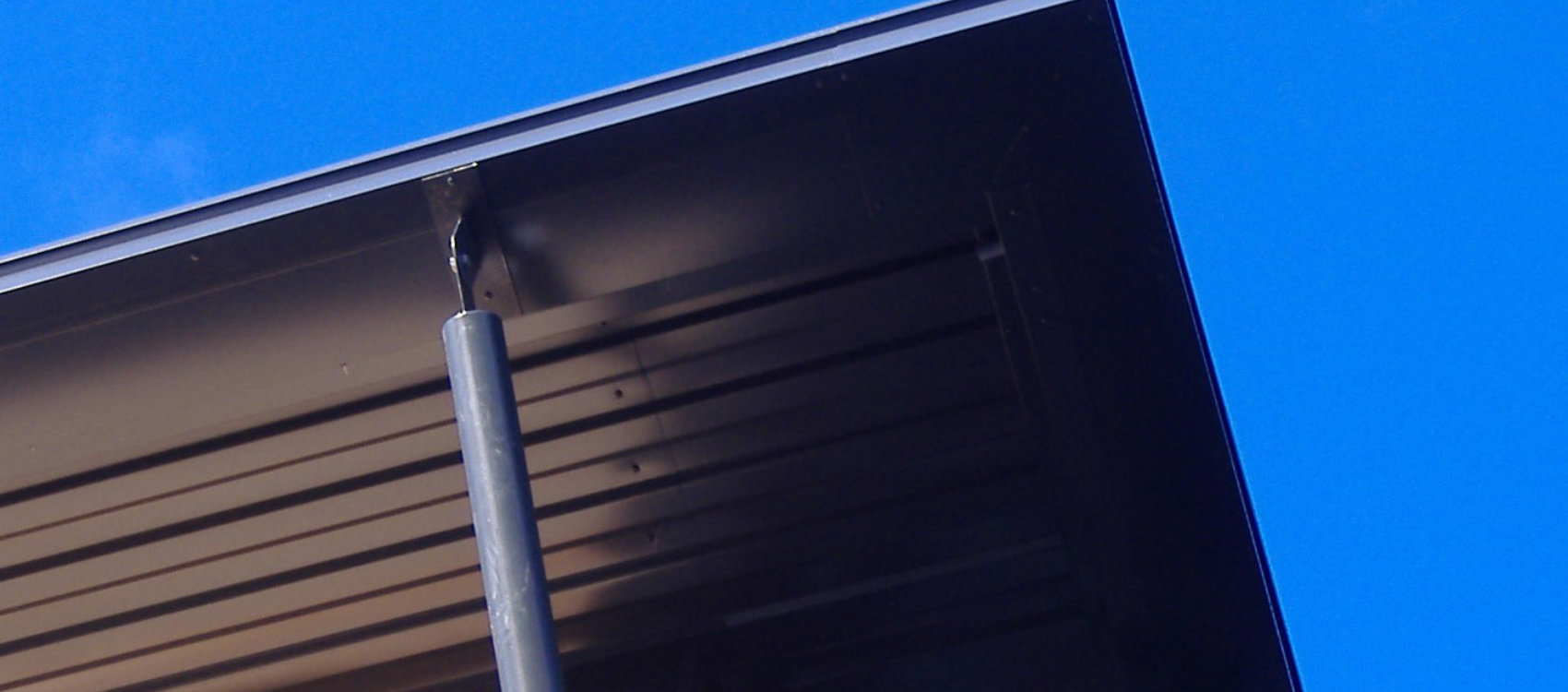

The APL range of Cantilever Systems offers elegant assemblies for verge, eave, parapet and bullnose applications.

The Cantilever Overhang detail can provide an overhang of up to 1500mm without supporting steelwork. This detail can have a minimum depth of only 110mm and a maximum of 500mm.

The APL Range of Cantilever Systems offer the simplest and most cost effective way to meet, or exceed, Part L2 detailing obligations. The Overhang detail provides better air sealing around purlins and reduces cold bridging.

The APL Tritherm™ System of installation and system configuration is fundamental to the Cantilever Range as well as being a part of most APL Walling and Roofing Systems.

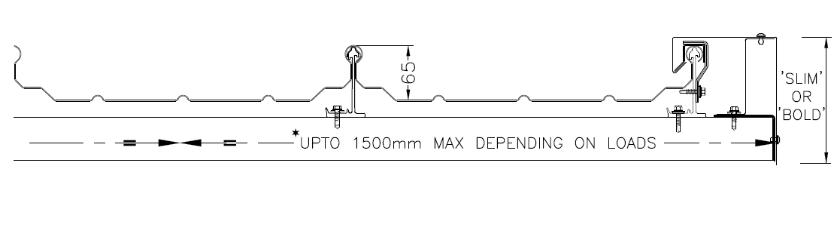

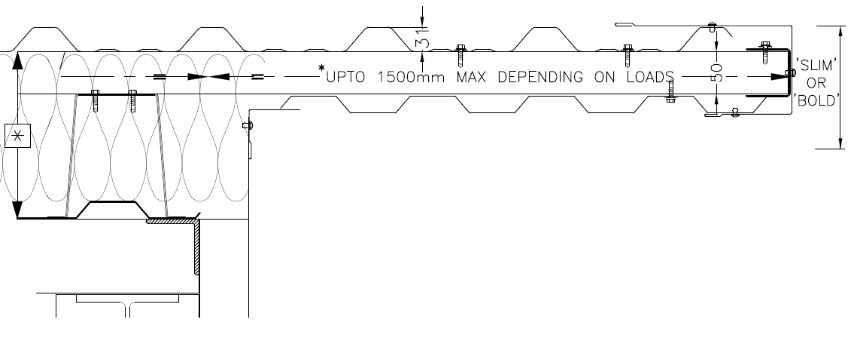

Cantilever Trapezoidal and Zipseam

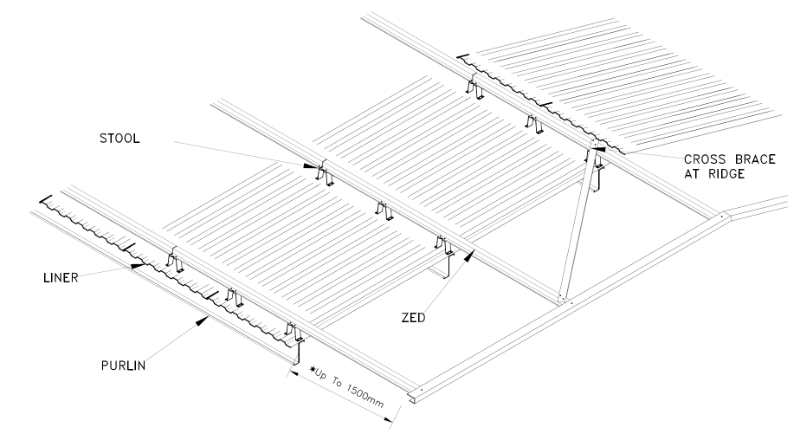

+1500mm Cantilever

APL Cladsafe and Cladshield logos
