Custom Panels and Profiles
All projects are individual so why shouldn’t your wall cladding be individual as well?
Our Custom profiles allow designers to choose their required colour, shape, finish and dimensions to deliver a result not achievable with standard roll-formed product. We can meet your specific project requirements within each shape range in terms of depth, pitch and outline.
Our custom bespoke profiles have been successfully tested to CWCT-standards.
Click to download our CWCT Test Bespoke Profiles
Key Benefits
- 100% Non-Combustible Construction
- The size and shape of the profiles can be changed
- The pitch of the profiles can be changed
- The depth of the profiles can be changed
- Available in DFF (discreet face fix) or SF (Secret Fix)
- Continuous lengths up to 6m long
- Aluminium, steel or Cor-ten
- Pre-coated aluminium (Armacoil™HDP), anodised, anodised-look PPC, weathered zinc/brass/copper/bronze, Prisma

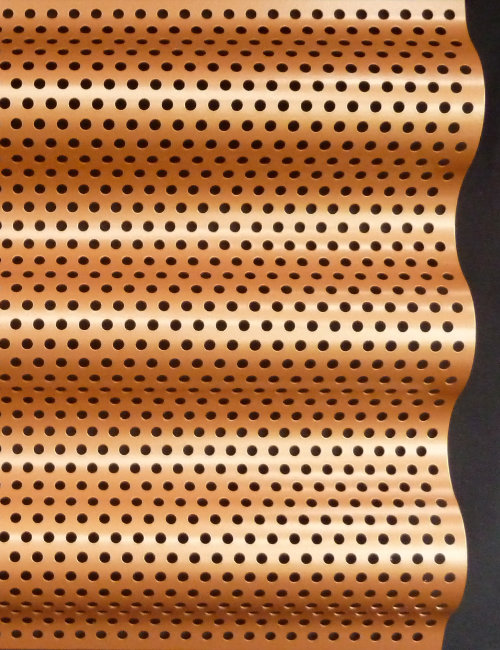

- Perforated or solid
- Material warranties up to 40 years, including in harsh marine environments
- Available as an acoustic construction with enhanced acoustic performance.
Designs can even match brick modules between window openings to provide a uniform and consistent panel fit.
Custom profiles are available in either aluminium or steel. Finishes include pre-painted coatings, powder coating, anodised aluminium, and Corten steel. Depending upon the finish, colour choice is almost infinite!

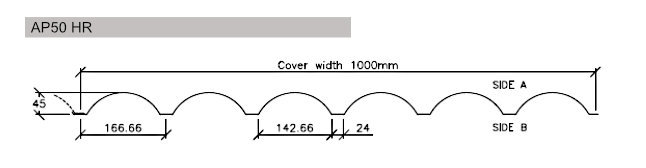

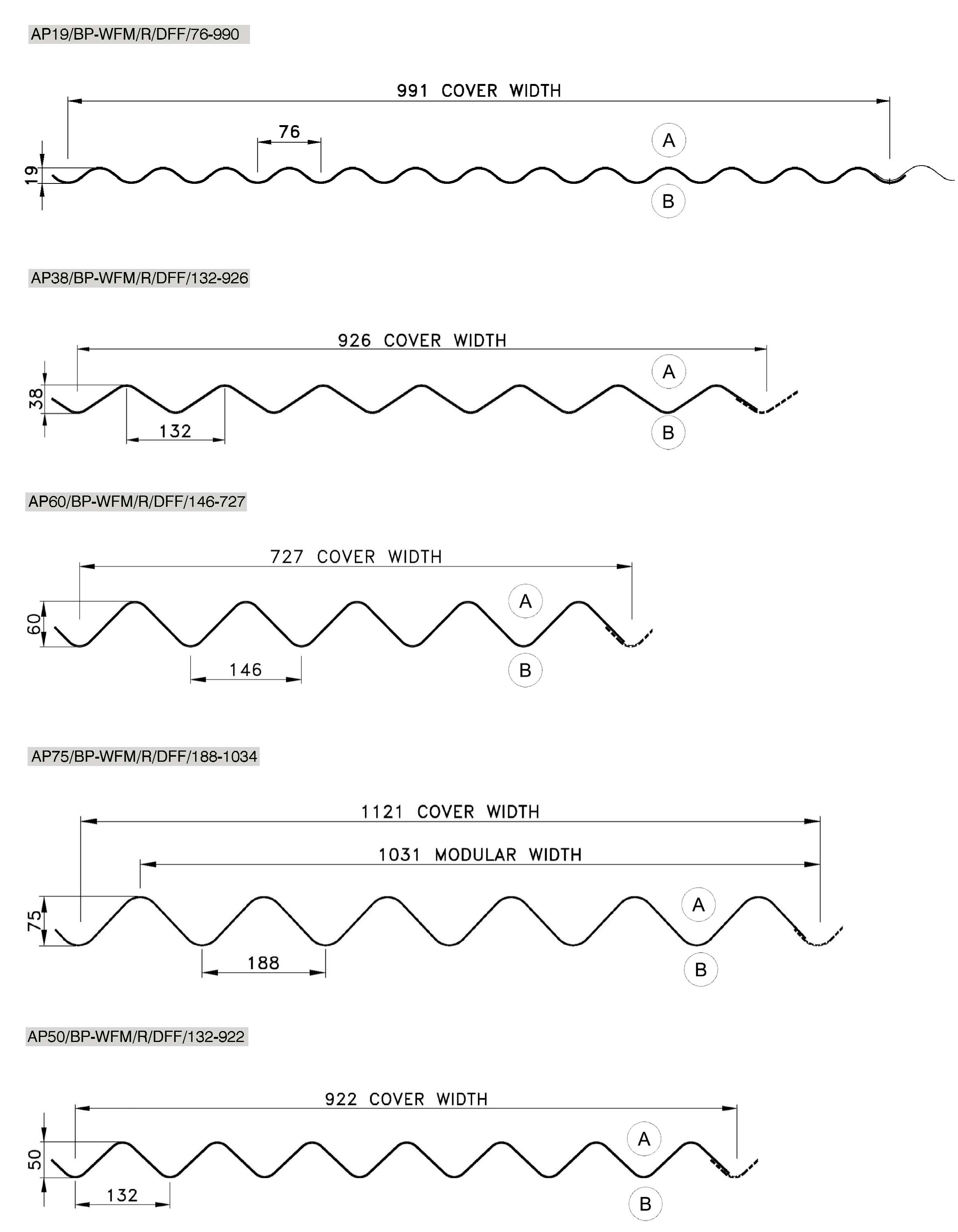

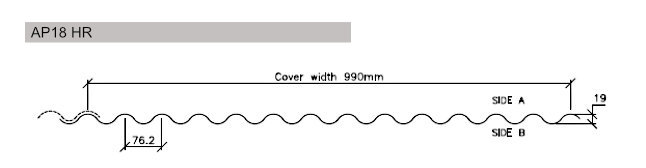

Custom Bespoke profiles come in six ranges (see drawings below for details):

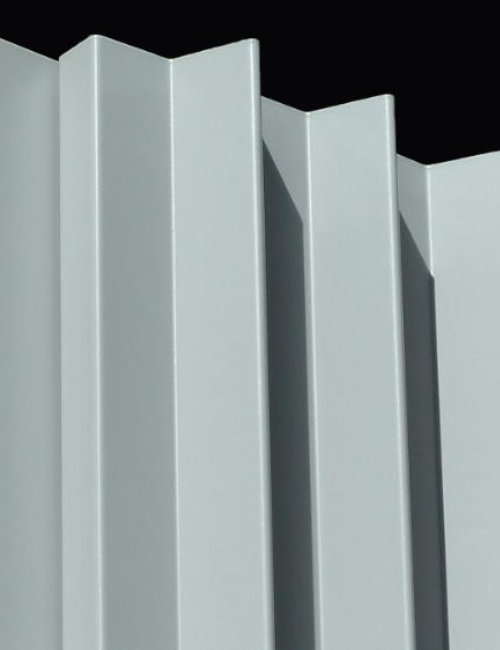

- Oxford “Multi F” Range – Variable Multi-Facet

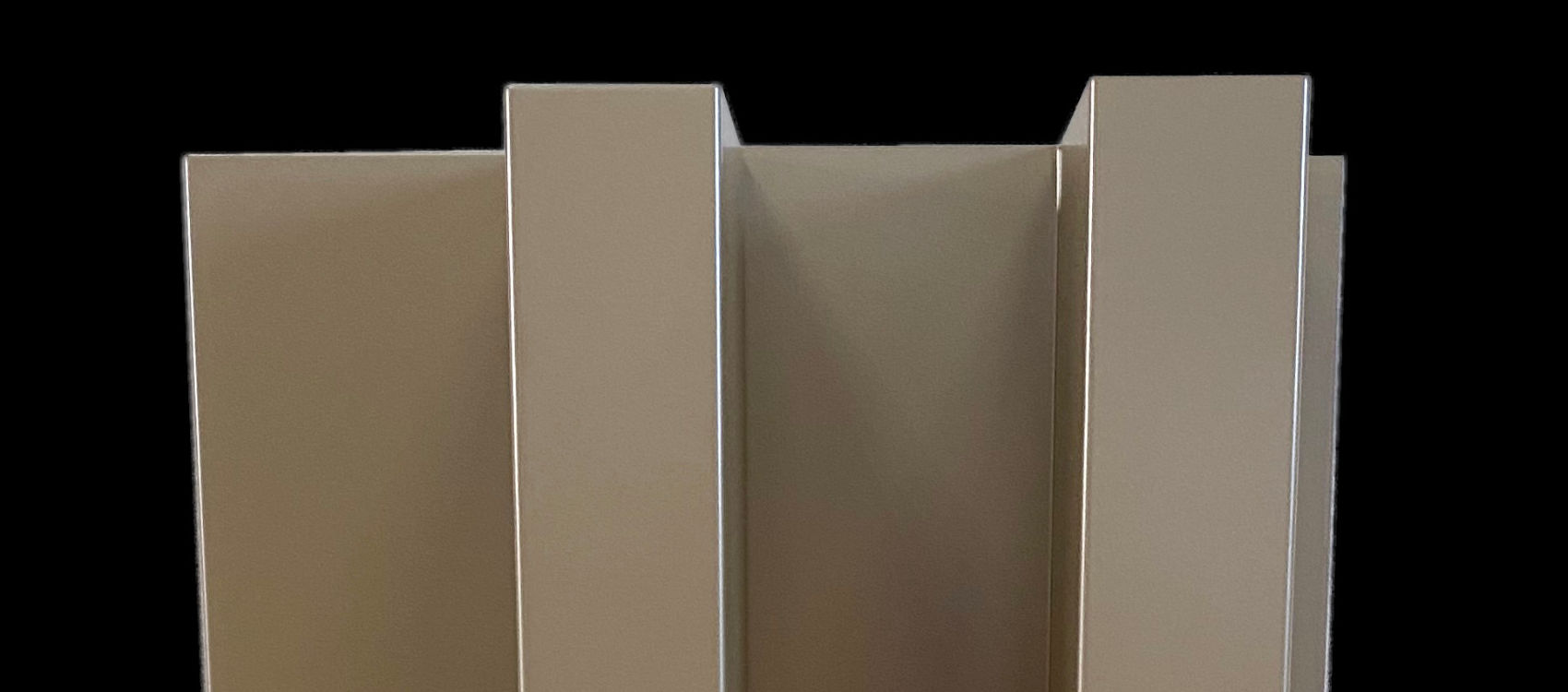

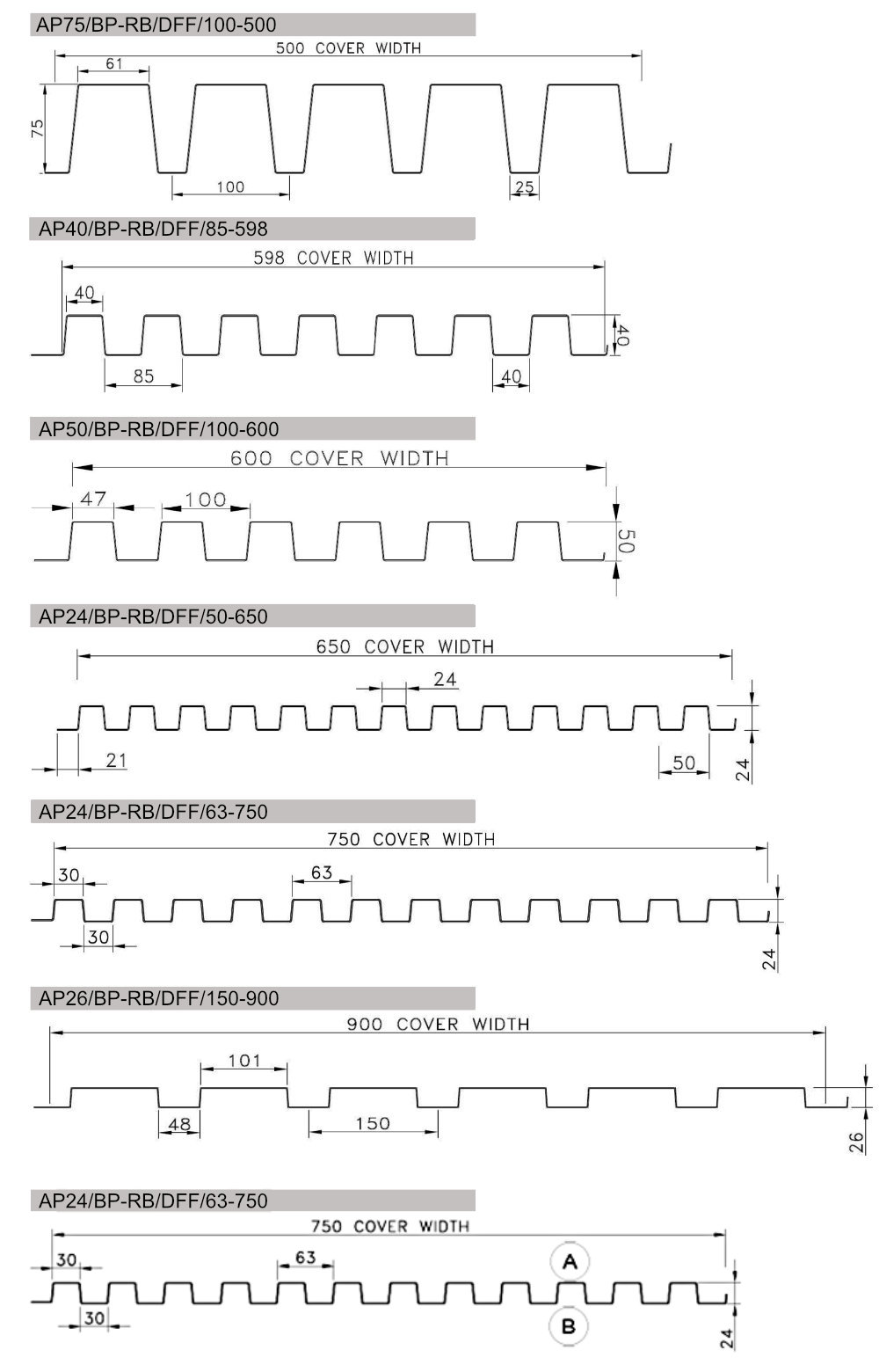

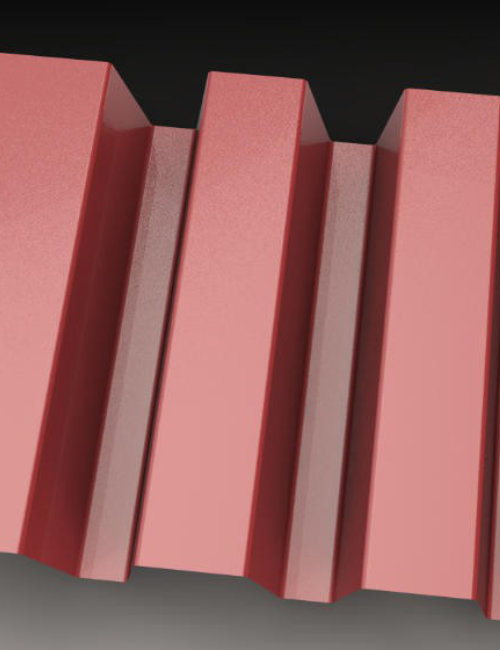

- Castellated Bank Range – Regular Box

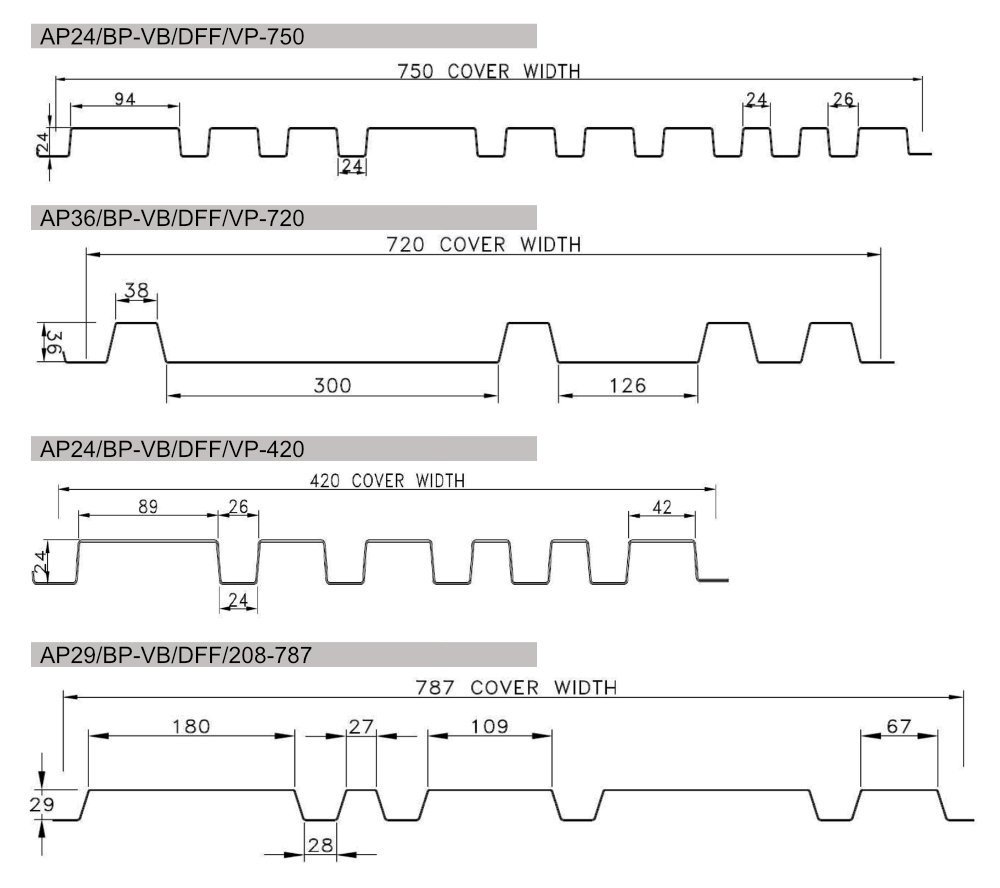

- Castellated Newton Range – Variable Box

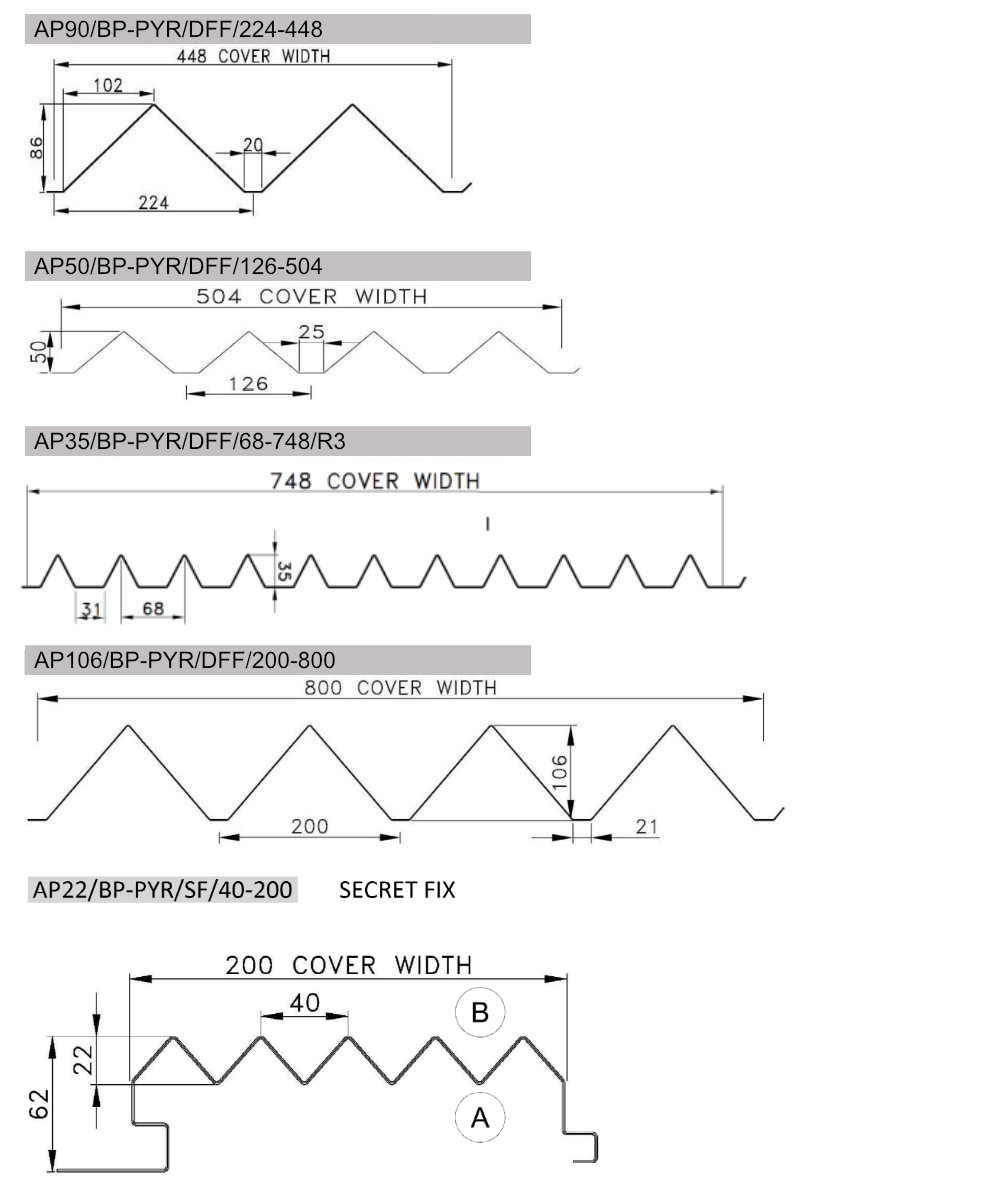

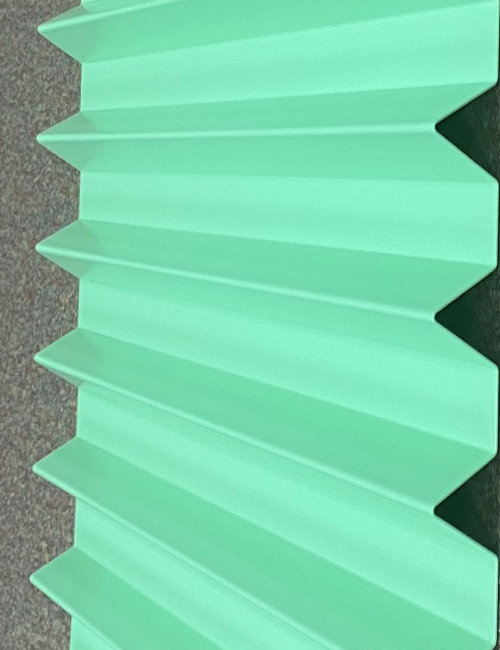

- Zig-Zag Pyramid Range – Pyramid

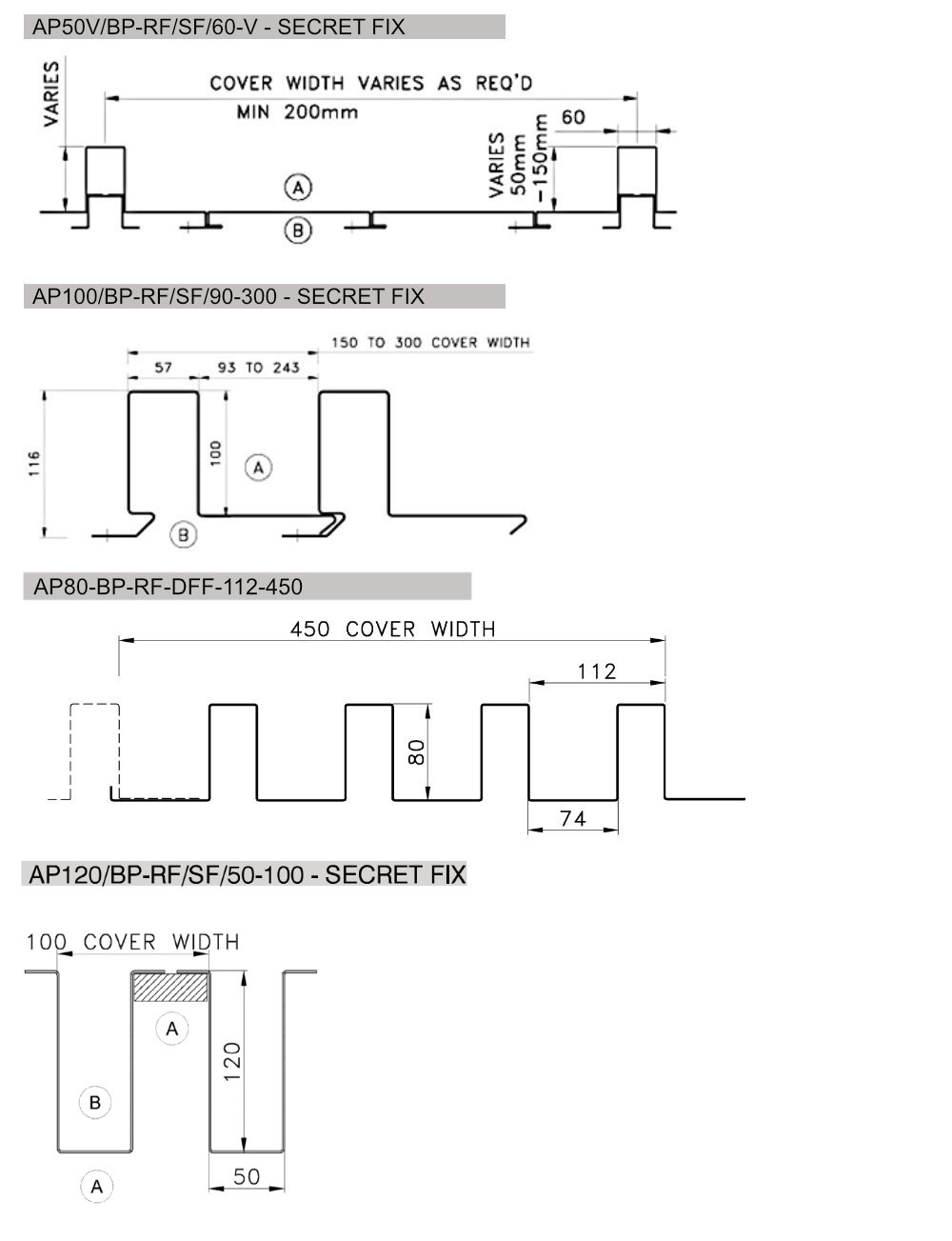

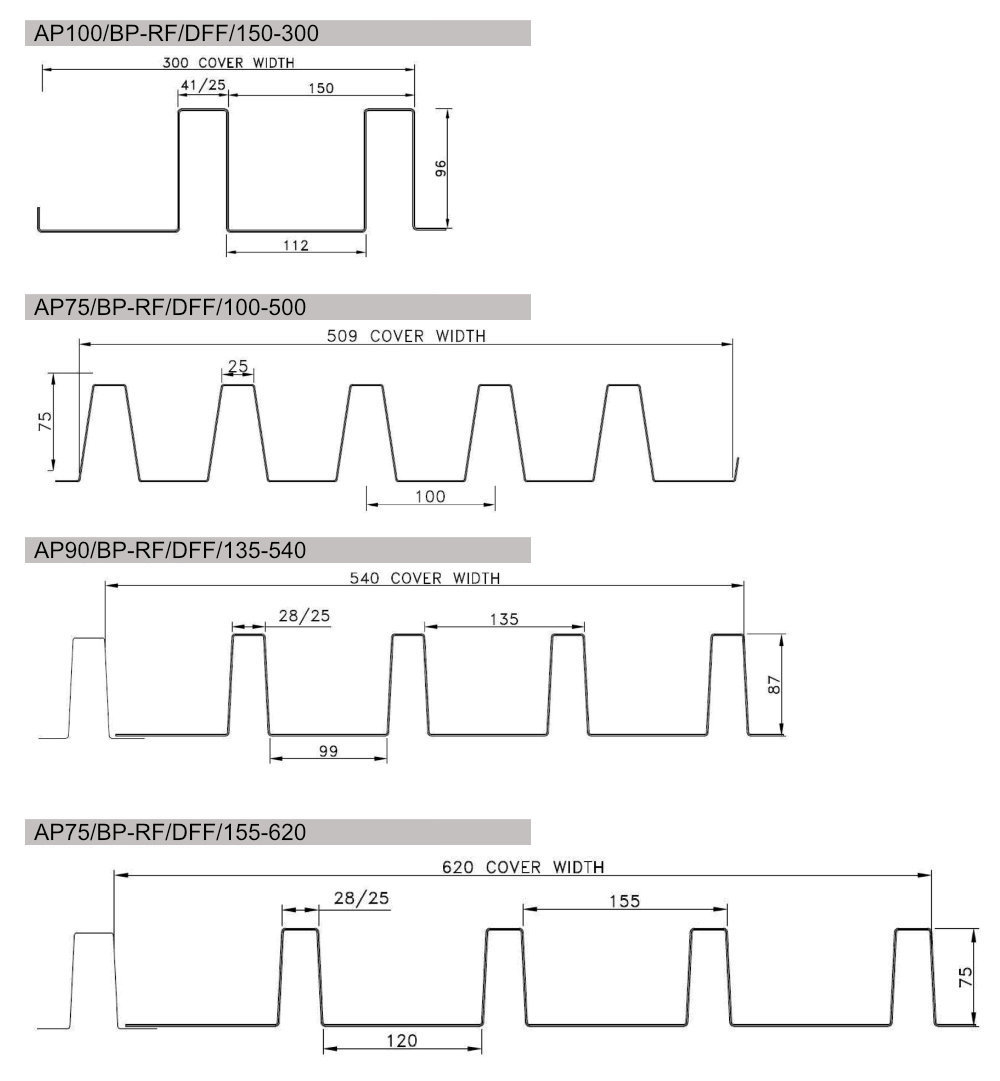

- Marlow Fin Range – Regular Fin

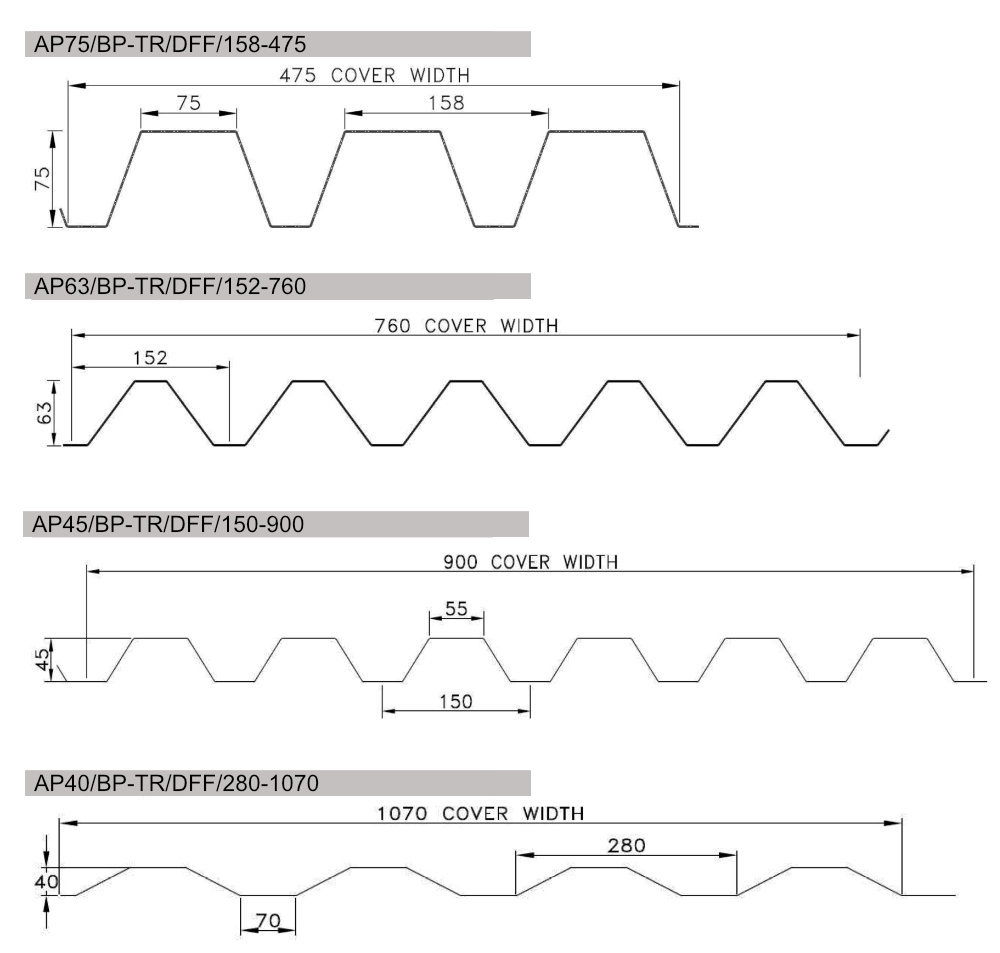

- Blue TRP Range - Trapezoidal
For a truly bespoke facade choose the APL ‘Bespoke’ service.
Download more information
Click to download our Quick Reference Custom Bespoke System Summary
Click to download our Custom Bespoke brochure
Click to download our CWCT Test Bespoke Profiles
Case Studies

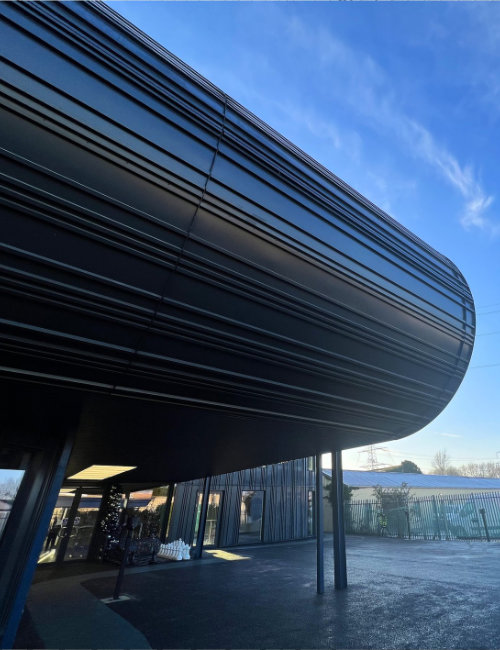

Birmingham Energy Innovation Centre
Please contact us for more information

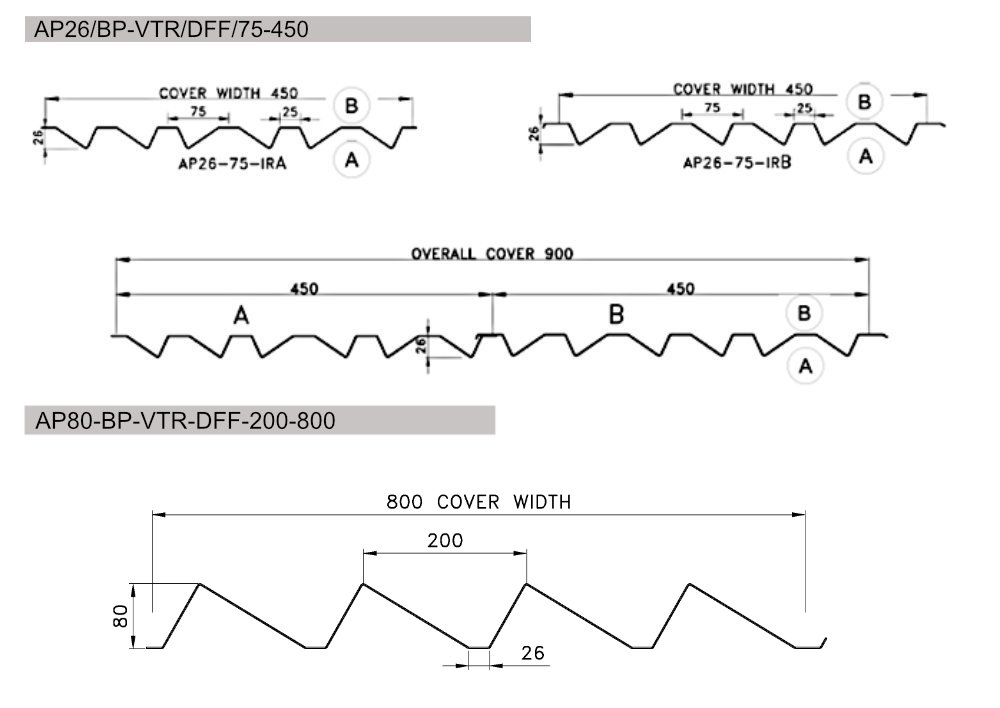

Oxford “Multi F” Range – Variable Multi-Facet
Full
specification
on
Variable Trapezoidal – System 10 CBP
